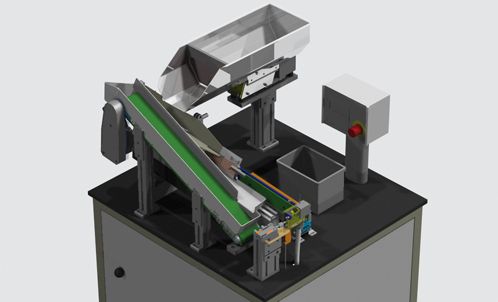

Linear Feeding System for srews

Implementation

• The screws are stocked in the VNB-type vibration-hopper system.
• From the hopper system, they arrive at a distribution chute driven by a linear conveyor.
• In the subsequent sorting line, the parts are aligned into the correct position.
• Incorrectly positioned parts are rejected and are fed to the return belt by a parallel chute to be fed again into circulation.
• Correctly positioned parts continue lineally into a short accumulation line.
• At the end of the accumulation line, the screws are separated and blown off.
• Including construction in the 3D-CAD system, assembly on aluminum plate and steel tube underframe
• Pneumatics fully furnished
• Completely electrically furnished incl.
• SP control
