Linear feeder type HF

Structure of the linear conveyors, type HF
The structure of the linear conveyor of type HF is characterized by the following components:

Spring package

Magnetic unit


Characteristics of linear conveyors, type HF

  • Thanks to the compact design, it is especially well-suited for cramped spatial conditions. The HF1 has a length of only 80 mm.
  • Ideal for vibration-sensitive transitions between the sorting device and the linear rail.
  • Thanks to the direct screw connection, the rubber feet as well as the compensation weight aren't necessary, as they are in the type LF.
  • Linear conveyor sections with lengths up to 350 mm possible



Components and accessories

We offer the following accessory components for the linear conveyor of type HF:

  • Control unit FAR-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable
  • Control unit FAR-S-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable, with input for a signal for accumulation shut-down
  • Control unit FARR-S-1: 230 V/ 50 Hz, combination of FAR-1 and FAR-S-1
  • Control unit FUR-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders
  • Control unit FUR-S-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders, with input for a signal for accumulation shut-down
  • Stand, height-adjustable, with screw-on plate for the optimal placement of the linear conveyor
  • Forked light barrier GL, fork widths between 10 mm and 120 mm
  • Spring packages can be delivered for special customization.



You can get detailed information about our accessory components in the download area.

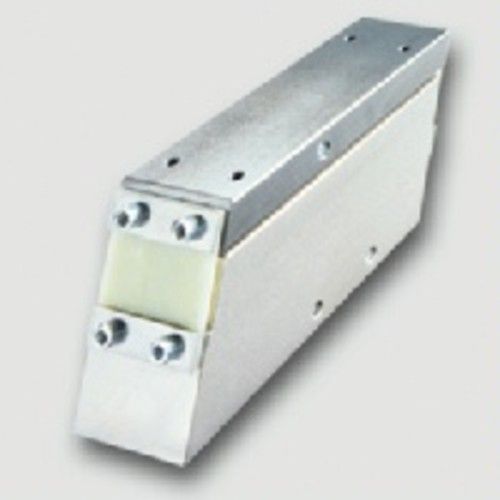

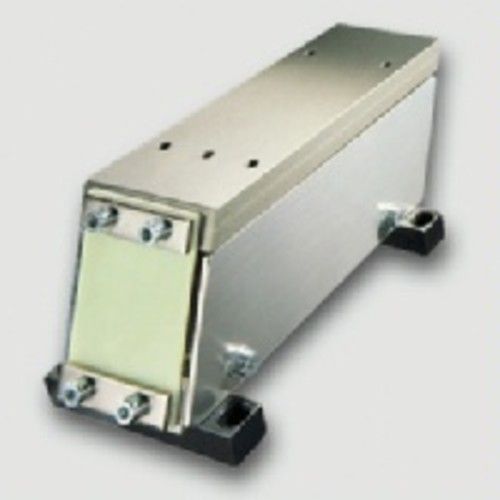

Photo gallery Linear feeder type HF
