Hopper combination

Structure of the hopper combination:

1 hopper system type BBH

2 hopper systems type BSF-1

Characteristics of hopper combination type BSF-1 and type BBH

  • Thanks to the accommodation capacity of large part volumes, very long autonomous runtimes are possible.
  • Very well-suited for storing heavy parts
  • The feeding unit's susceptibility to failure is reduced decisively by the constant charges.
  • when being filled by operating personnel, the filling aid facilitates the operation
  • Possible to add automatic tilting device for large containers



Components and accessories

We offer the following accessory components, which are compatible with our hopper systems of type BBH:

  • Hopper control BS3, connection: 230 V/ 50/60 Hz or 400 V/ 50/60 Hz, designed for the connection of a 3-phase motor, 3 inputs for the connection of external sensors, 2 outputs (floating relay contacts) for max. 230 V,
    2 A AC max.
  • Pendulum switch PS1 for automated filling level control of bulk material in the sorting device, compact design, optical status display via LED, inductive switch without wear
  • Filling level query in the bulk hopper with a light barrier divided into two parts
  • Filling aid for manual filling
  • Tilting device for large containers


You can get detailed information about our accessory components in the download area.

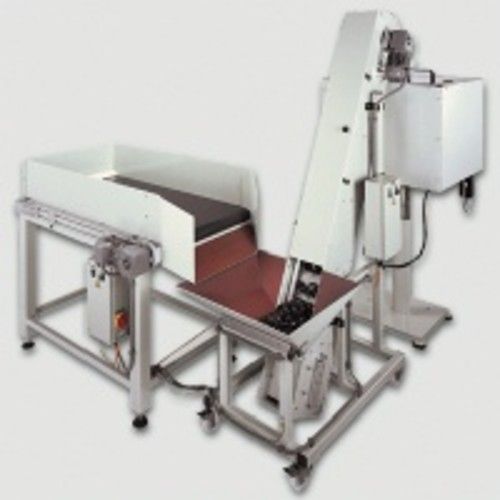

Photo gallery Hopper combination type BSF-1 and type BBH
