Linear feeder type LFL

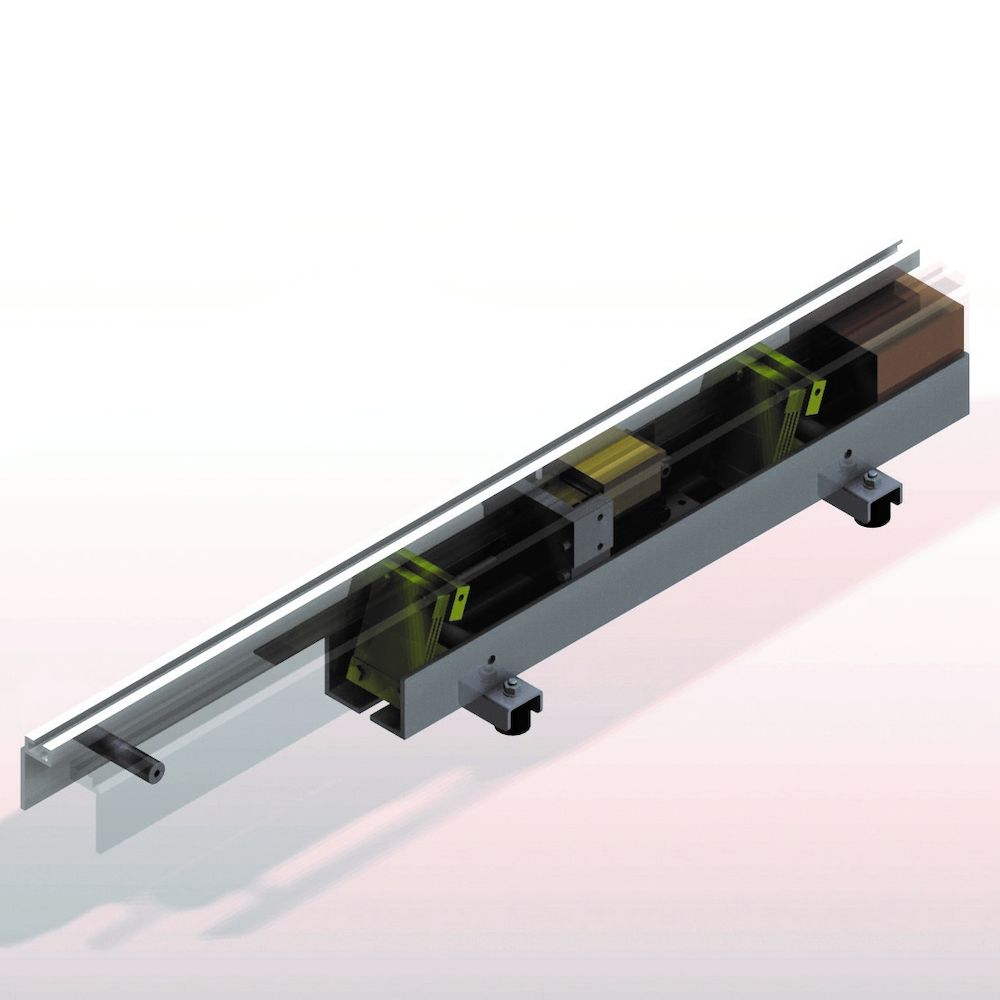

Structure of the linear conveyors, type LFL

The structure of the linear conveyor of type LFL is characterized by the following components:

Magnetic unit

Spring package

Weight

Rubber foot

Characteristics of linear conveyors, type LFL

  • Used in linear path lengths and hopper systems
  • Well-suited for the transportation of heavy mass production parts
  • Linear path lengths up to 2 m and hopper systems with a capacity of up to 50 kg bulk material can be easily realized.
  • Multi-path conveying sections or wide paths are implemented.





Components and accessories

We offer the following accessory components for the linear conveyor of type LF:

  • Control unit FAR-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable
  • Control unit FAR-S-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable, with input for a signal for accumulation shut-down
  • Control unit FARR-S-1: 230 V/ 50 Hz, combination of FAR-1 and FAR-S-1
  • Control unit FUR-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders
  • Control unit FUR-S-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders, with input for a signal for accumulation shut-down
  • Stand, height-adjustable, with screw-on plate for the optimal placement of the hopper system
  • Forked light barrier GL, fork widths between 10 mm and 120 mm
  • Spring packages can be delivered for special customization.



You can get detailed information about our accessory components in the download area.

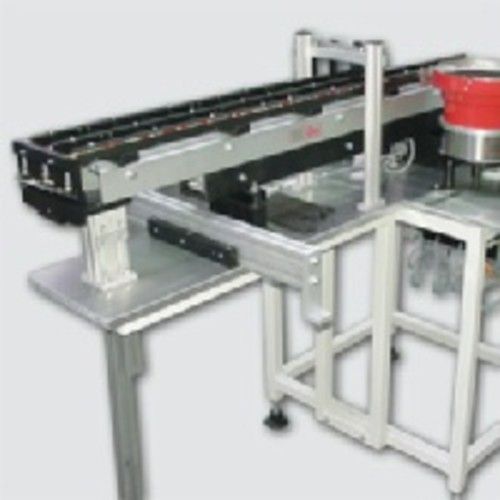

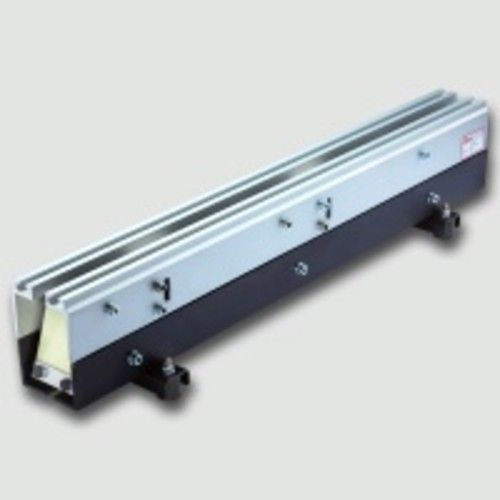

Photo gallery Linear feeder type LFL
