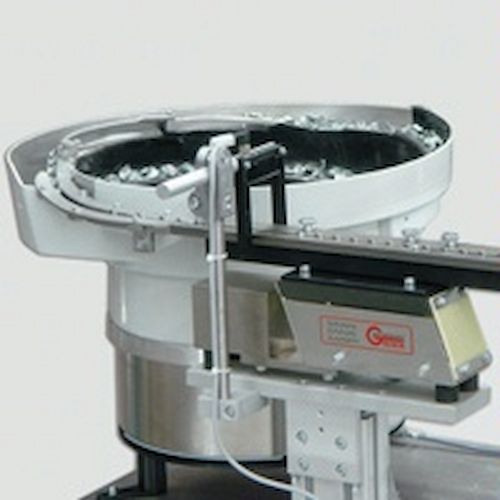

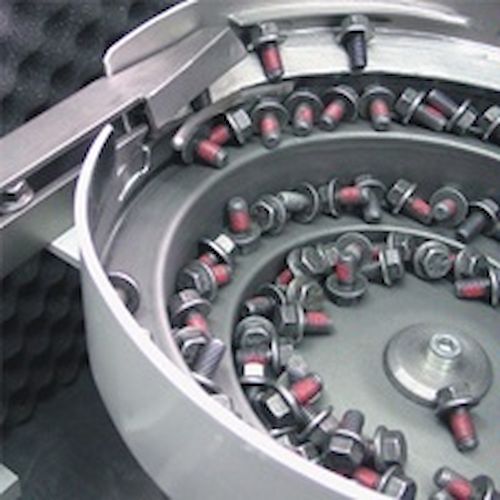

Bowl Feeders

Structure of the bowl feeder

The structure of a bowl feeder is always characterized by two major components:

the sorting bowl, in which the parts are aligned

the drive, which generates vibrations in the sorting bowl by means of mechanical oscillations, thereby putting the parts in motion.

The dimension and design of both these components are determined by the parts to be fed.

Characteristics of Grimm bowl feeders

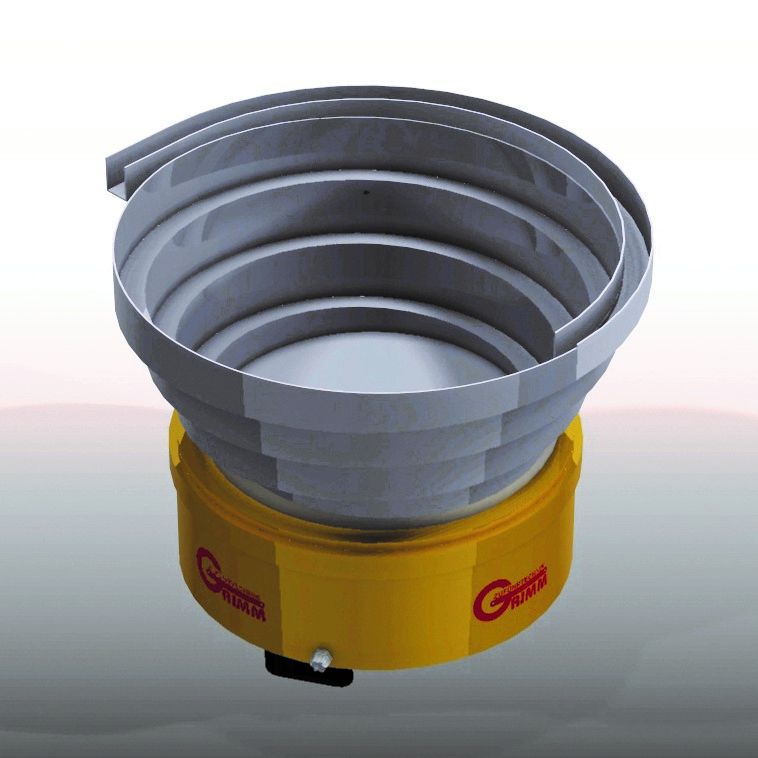

Structure made up of 2 components: Sorting bowl and bowl feeder drive RF
Diameter of top part from 70 mm to 1200 mm
Very good price/performance ratio

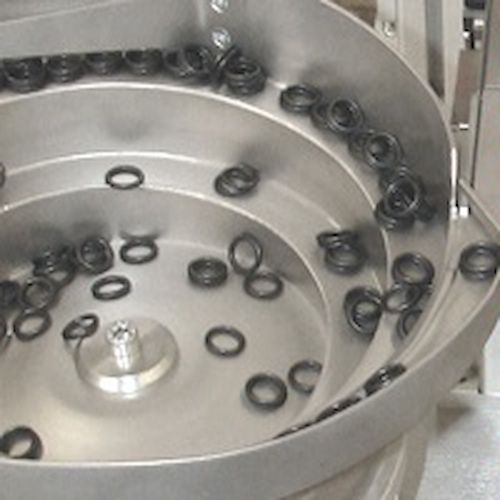

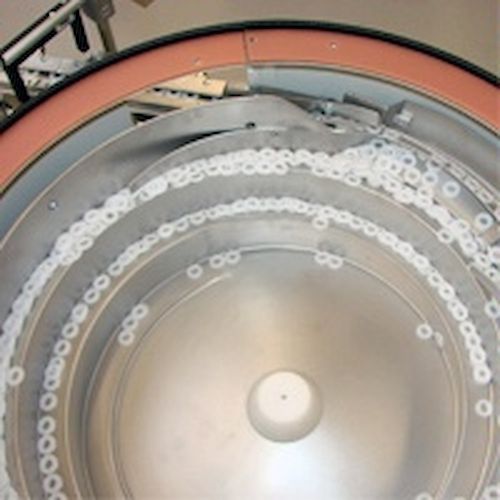

Three different sorting bowl designs: cylindrical, step-shaped or conical
"Heavy" parts can be easily sorted.
Rough environmental influences (such as oil or dirt) are not a problem

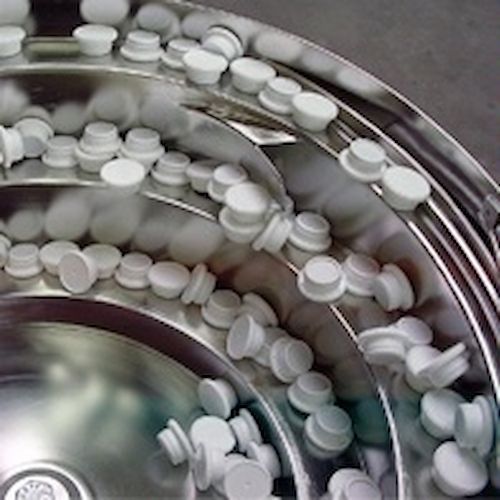

Pharmaceutical or clean room versions in VA (electrically polished) are realized.

Components and accessories
We offer the following accessory components, which are compatible with the Grimm bowl feeders:

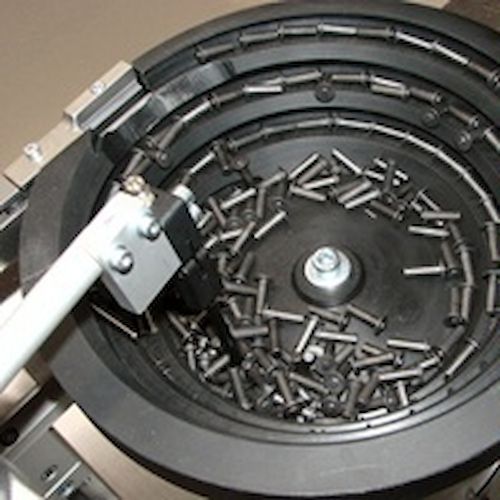

For optimum feeding properties, it is necessary to coat the inside of the sorting bowl, depending on the condition of the parts. Habasit, PU or brush coating

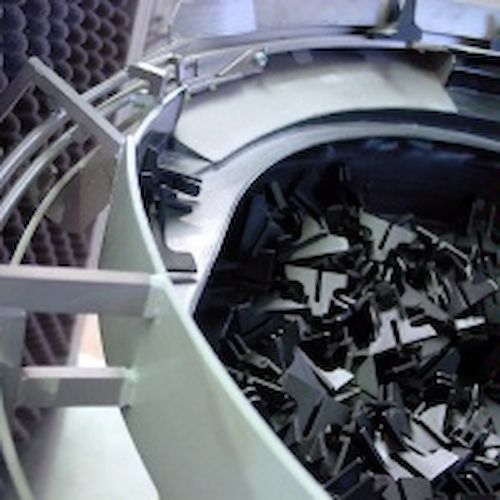

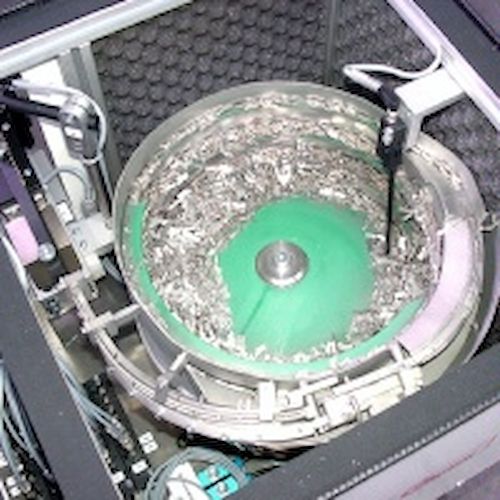

Noise protection bowl feeder SM, available in 6 different sizes, 20 mm to 50 mm of sound-proofing material ensures optimal noise absorption.
Control unit FAR-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable
Control unit FAR-S-1: 230 V/ 50 Hz, for linear and bowl feeders, phase-controllable, with input for a signal for accumulation shut-down
Control unit FARR-S-1: 230 V/ 50 Hz, combination of FAR-1 and FAR-S-1
Control unit FUR-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders
Control unit FUR-S-1: 230 V/ 50 Hz, purpose-built frequency converter for vibratory feeders, with input for a signal for accumulation shut-down
Pendulum switch PS1 for automated filling level control of bulk material in the sorting device, compact design, optical status display via LED, inductive switch without wear
Base plate, height adjustable, with fastening plate for optimally placing the bowl feeder
Floor stand of type SBF and type SBV, for the optimal placement of the bowl feeder
Dirt outlet openings, as well as quick-emptying flaps

You can get detailed information about our accessory components in the download area.
